USS Wasp CVA 7 (As built, 1940) Displacement: 14,700 tons standard (design); 19,116 tons full load Dimensions (wl): 688' x 80.75' x 20' / 209.7 x 24.6 x 6.1 meters Dimensions (max.): 741.25' x 109' / 225.9 x 33.2 meters Armor: 60-lb STS conning tower; 3.5" (side), 50-lb (deck) over steering gear Power plant: 6 boilers (565 psi); steam turbines; 2 shafts; 75,000 shp Speed: 29.5 knots Endurance (design): 12,000 nautical miles @ 15 knots Armament: 8 single 5"/38 gun mounts; 4 quad 1.1"/75 machine gun mounts; 24 .50-cal machine guns Aircraft: 80+ Aviation facilities: 2 elevators (+ 1 deck-edge); 2 flight-deck and 2 hangar-deck hydraulic catapults Crew: 1,800 (ship's company + air wing) (peacetime)
USS Wasp CV 7

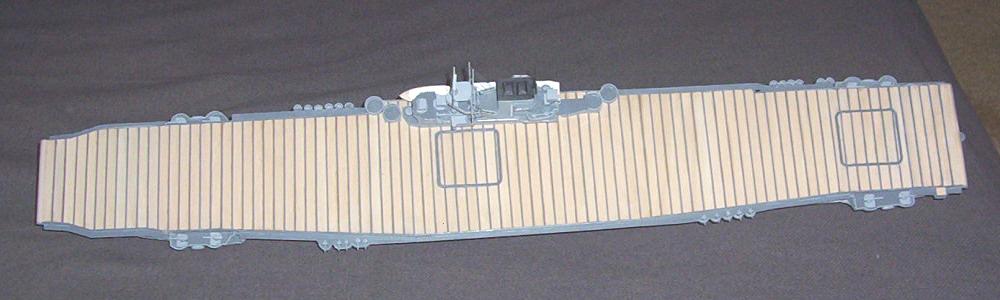

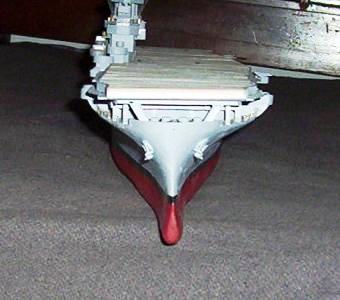

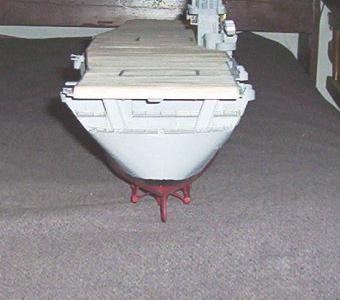

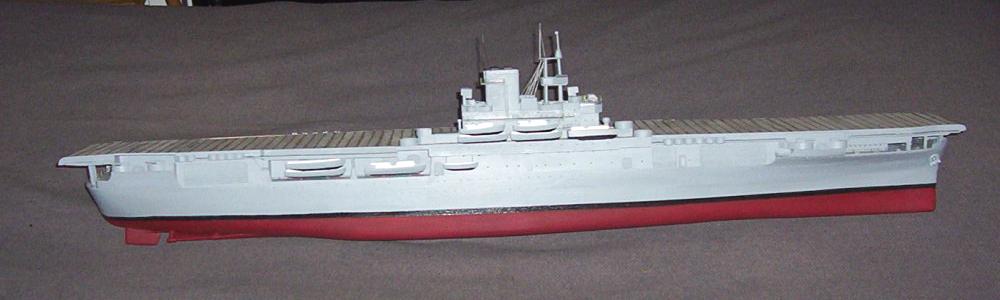

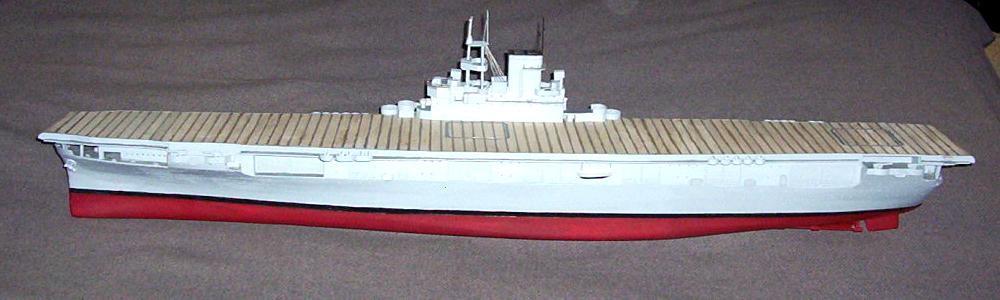

This model is 43 1/2" Long W/L, 10" High, 5 1/2" at Main Deck, and 6 1/2"
at the Fligh Desk.

USS Wasp CV 7 USS Wasp CV 7 USS Wasp CV 7
USS Wasp CV 7USS Wasp CV 7
